Shower Buzzer Operation

Shower Buzzer Operation

Operation

The outside buttons on either side of the buzzer can be pressed to alert anyone inside the shower. Pressing the green button causes the doorbell signal to ring. The red button causes the shower buzzer to ring. Inside the shower, the shower button can be used to signify the shower is currently in use. When the shower button is pressed, both the green LED ring around the shower button and the green button will light up. When the emergency button is pressed, the red ring around the red button (at the door) will light up to indicate a problem, and the door buzzer will sound to alert anyone waiting outside the vehicle.

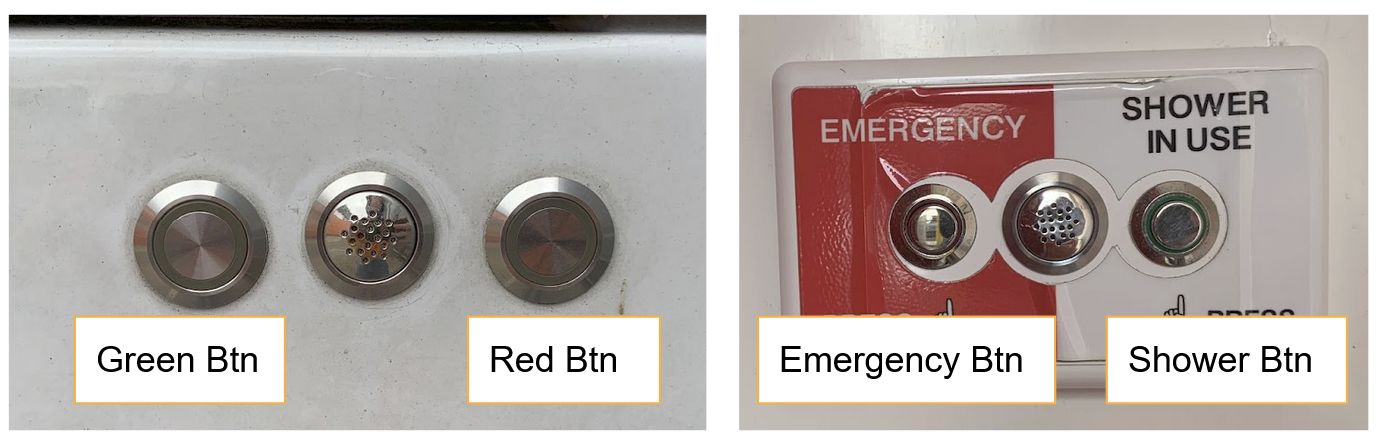

                          Outside Panel                             Inside Shower
